How to Add Geofence

Prerequisites. 

• Have administrator permissions: You can view, edit, modify, and delete all portal user and configuration settings.  
• Have editor permission: Can adjust configurate settings and see approvals; they cannot delete data or invite portal users.

How to give user permissions: How to Give User Permissions

• Login to the portal with the following link: https://portal.mobohubb.com/.

How to log in? If you want to know how to log in, you can find out at the following link: How to Login to the Portal

How to Add Geofence

Step 1.

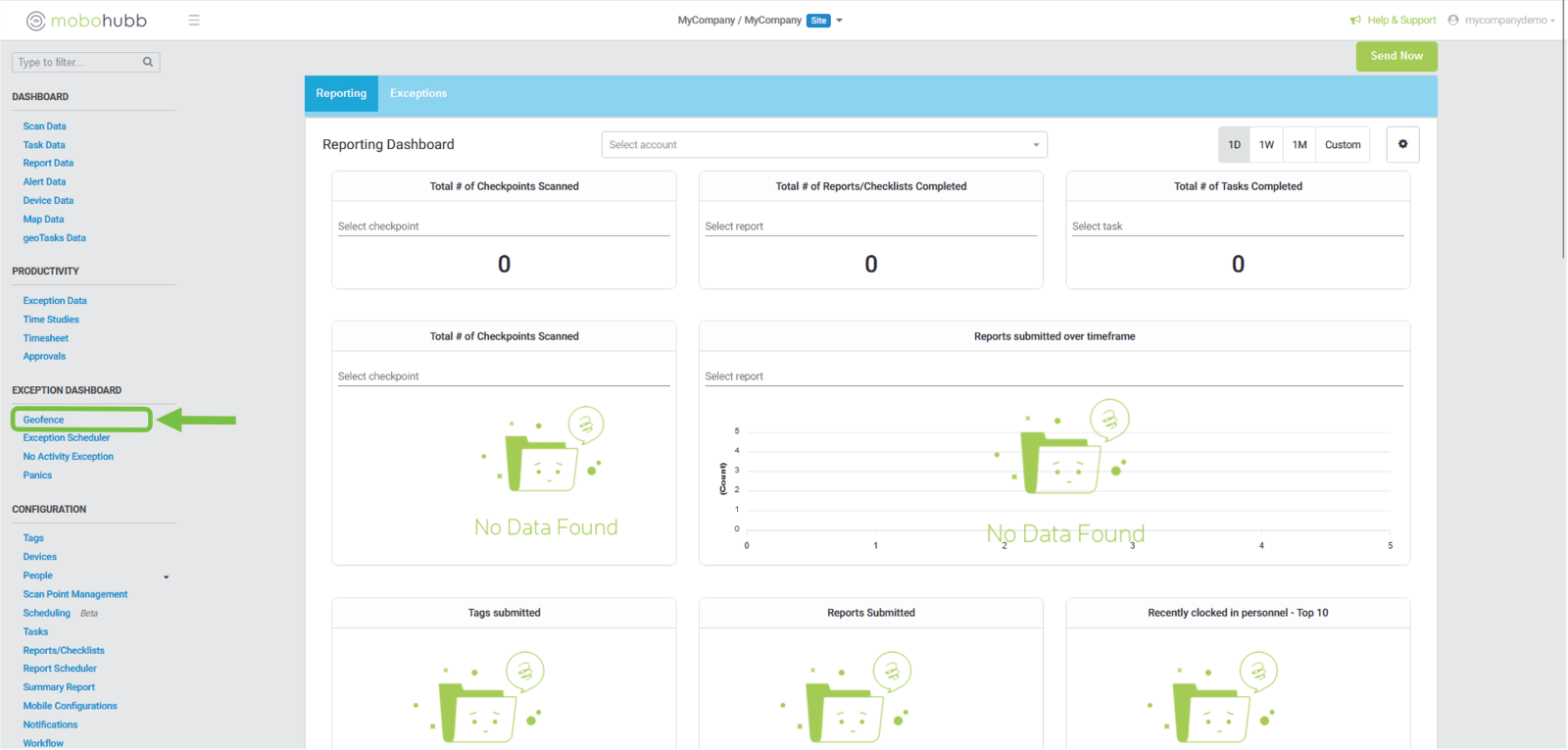

Navigate to this panel and go to the menu on the left side of your screen, then select the “Geofence” option.

 

Step 2.

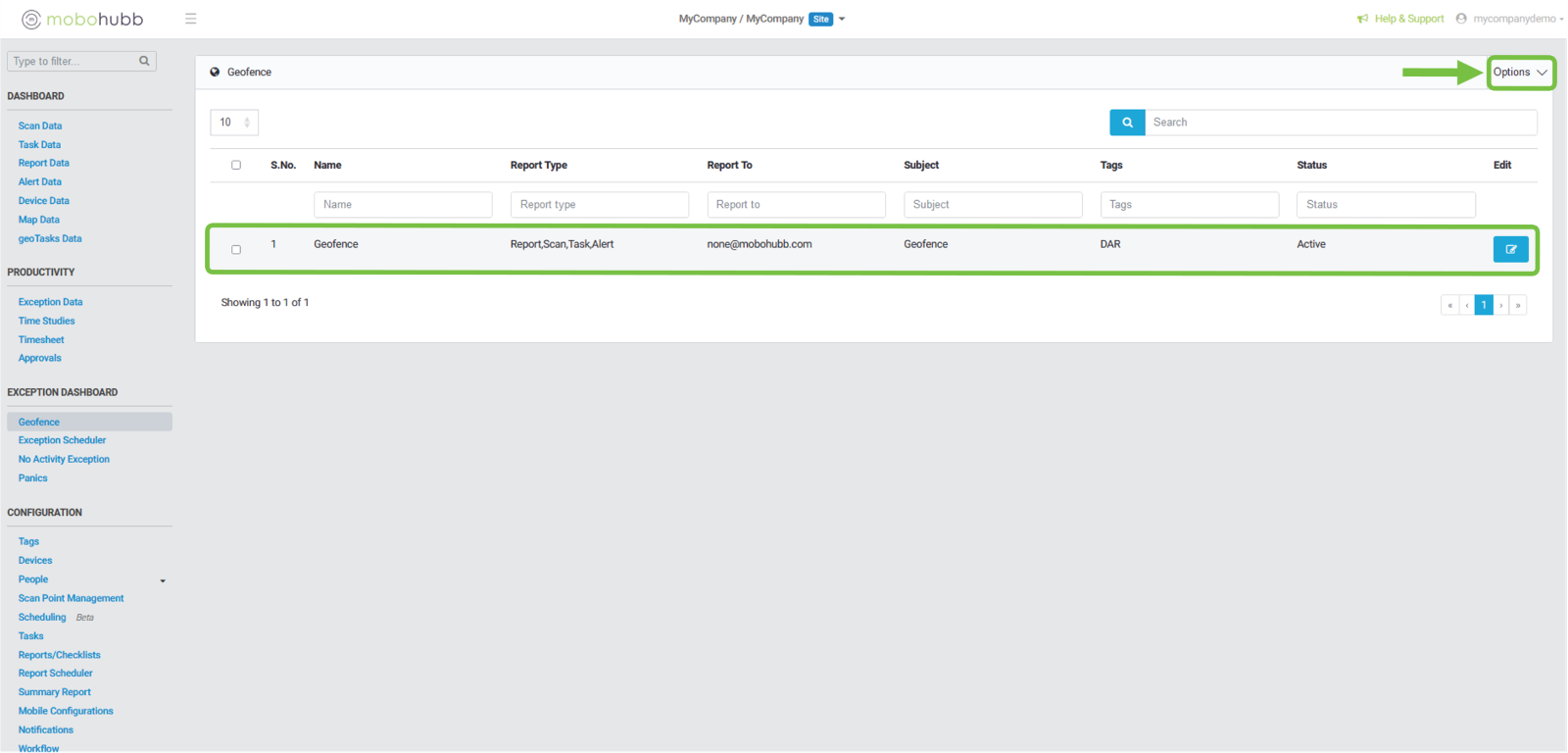

After clicking on “Geofence”, the following view will be displayed, where you will have all the geofences created. Navigate to the upper right side and click on the “Options” button.

Step 3.

After clicking the "Options" button, a list of options is displayed; select "Add".

Step 4.

After clicking the “Add” button, the following view will appear, where you will need to configure a new geofence.

• “Choose Account*”: In this field, you must select the account for which the geofence will be created.
• "Report Name": In this field, you must enter the name of the report.
• "Report Type*": In this list of options, you must mark in the checklist what you want to be included (report, scan, task, alert, timesheet).

Note: You can check only one, several, or all the checklists for the report.

• "Tags": In this dropdown, you must choose the tag configured for the geofence; this will be mandatory.

• To create a geofence, on the map, you will need to navigate to the middle of the map where the following icons are located:

Hand: This is used to move around the map.

Circle: This is to create a radius geofence.

Polygon: This is to create a geofence with the shape required, generating points, and creating     the figure.

Square: This is to create a geofence in the shape of a square.

• To delete the geofence created, if necessary, we must navigate to the bottom of the map and click on the "Delete Area" button.
• To activate the geofence we must click on the "Active" checkbox when this active will turn blue.
• Then we will navigate to the blue button and click on "Next".

Step 5.

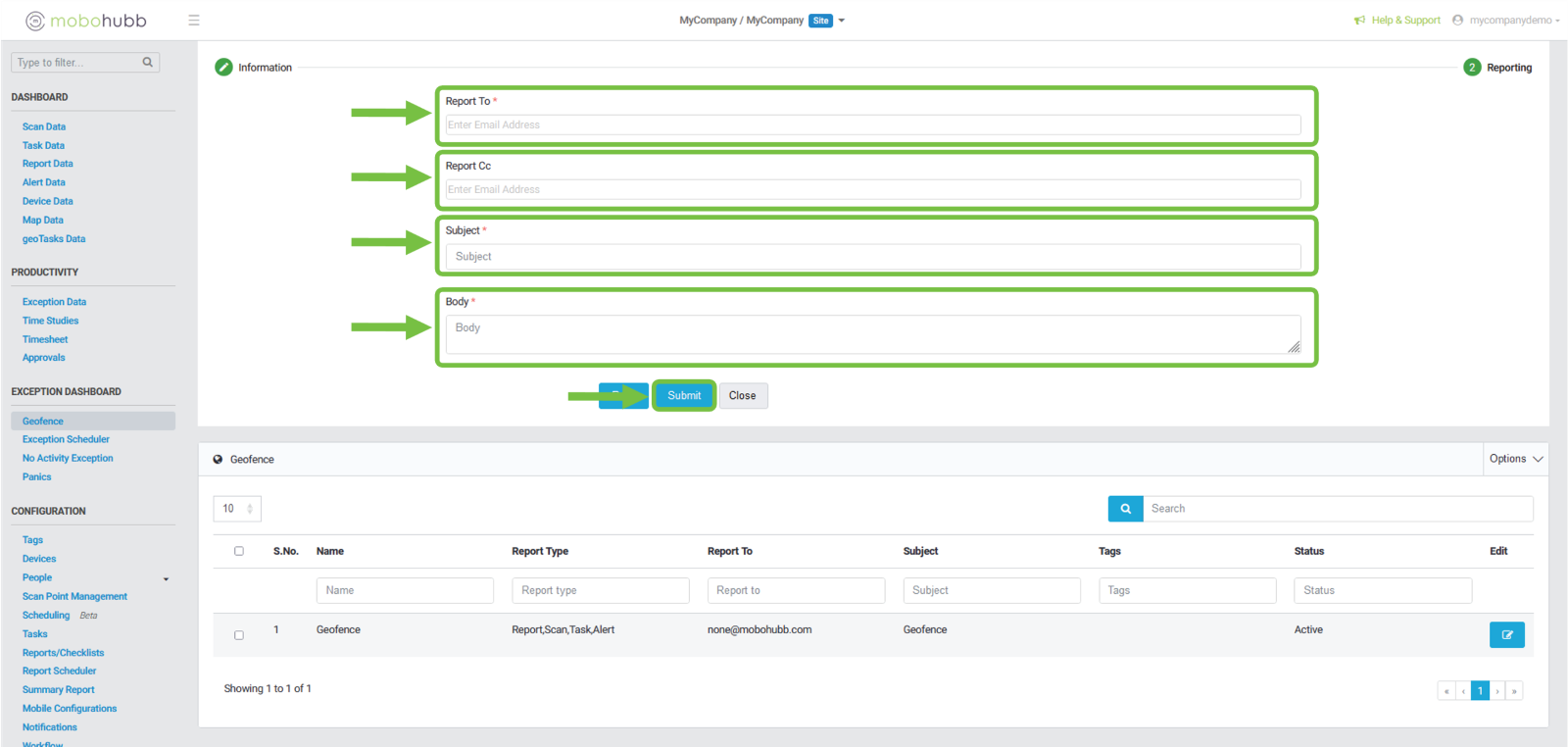

After clicking "Next", the following view is loaded, where you must complete the following information:

• "Report To*": In this field you must enter the email where the geofence report will be sent.
• "Report Cc": In this field you can add more emails to whom a copy of the geofence report will be sent.
• "Subjet*": In this field you must enter the subject of the email.
• "Body*": In this field you must add the body of the email.

To save the geofence navigate to the blue button at the bottom and click on "Submit".
