How to Add New Scan Points to the Portal

Prerequisites.

• Have administrator permissions: You can view, edit, modify, and delete all portal user and configuration settings.  
• Have editor permissions: Can adjust configurate settings and see approvals; they cannot delete data or invite portal users.

How to give user permissions:  How to Give User Permissions

• Login to the portal with the following link: https://portal.mobohubb.com/ 

How to log in? If you want to know how to log in, you can find out at the following link: How to Login to the Portal

How to Add New Scan Poinst to the Portal

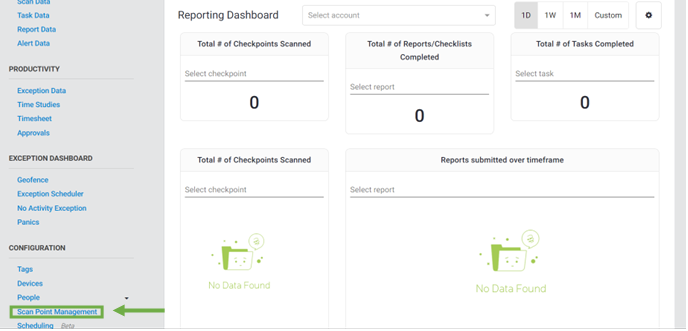

Step 1.

Navigate to this panel and go to the menu on the left side of your screen, then select the “Scan Point Management” option. 

 

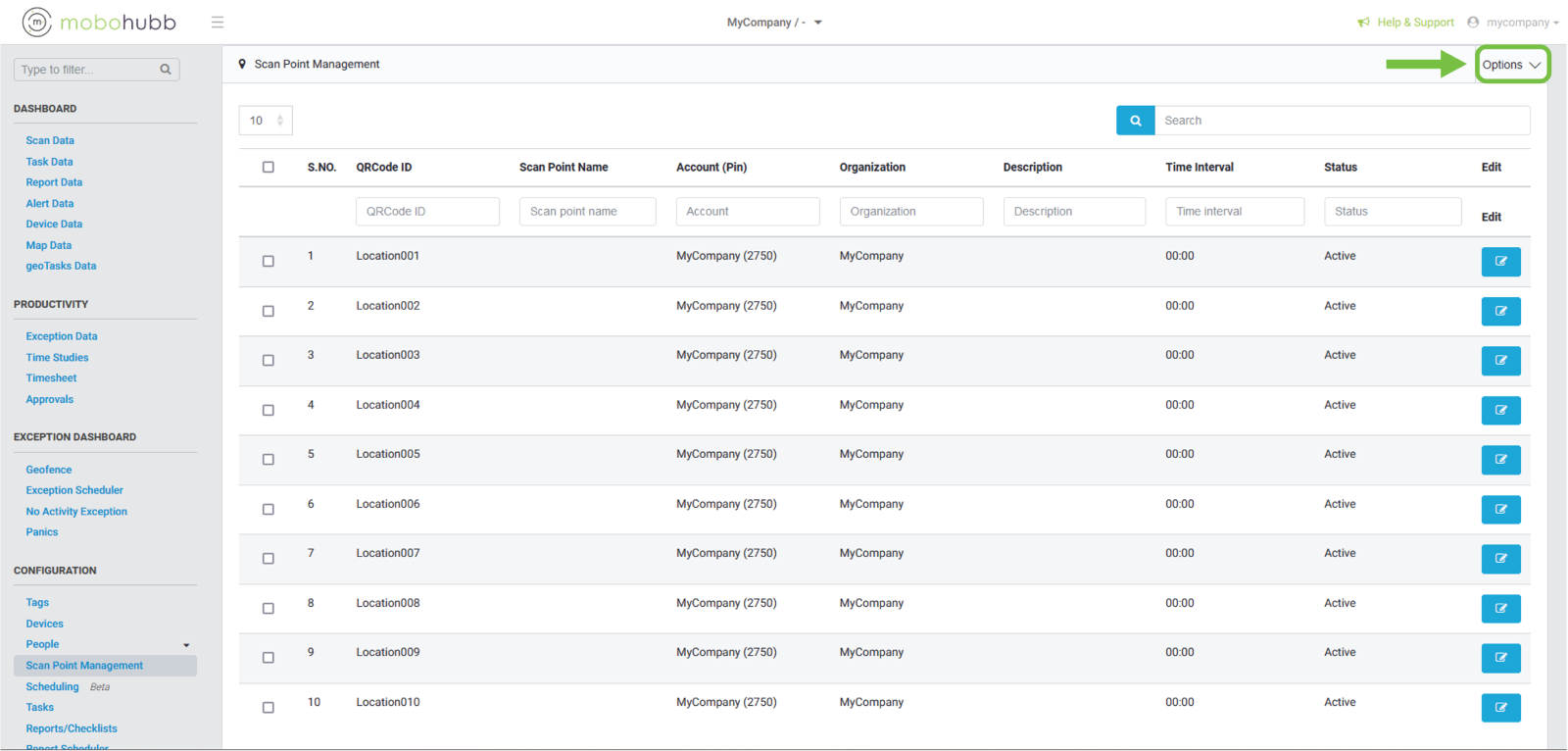

Step 2.

After clicking on “Scan Point Management”, the following view will be displayed, where you will have all the scan points created. Navigate to the upper right side and click on the “Options” button.

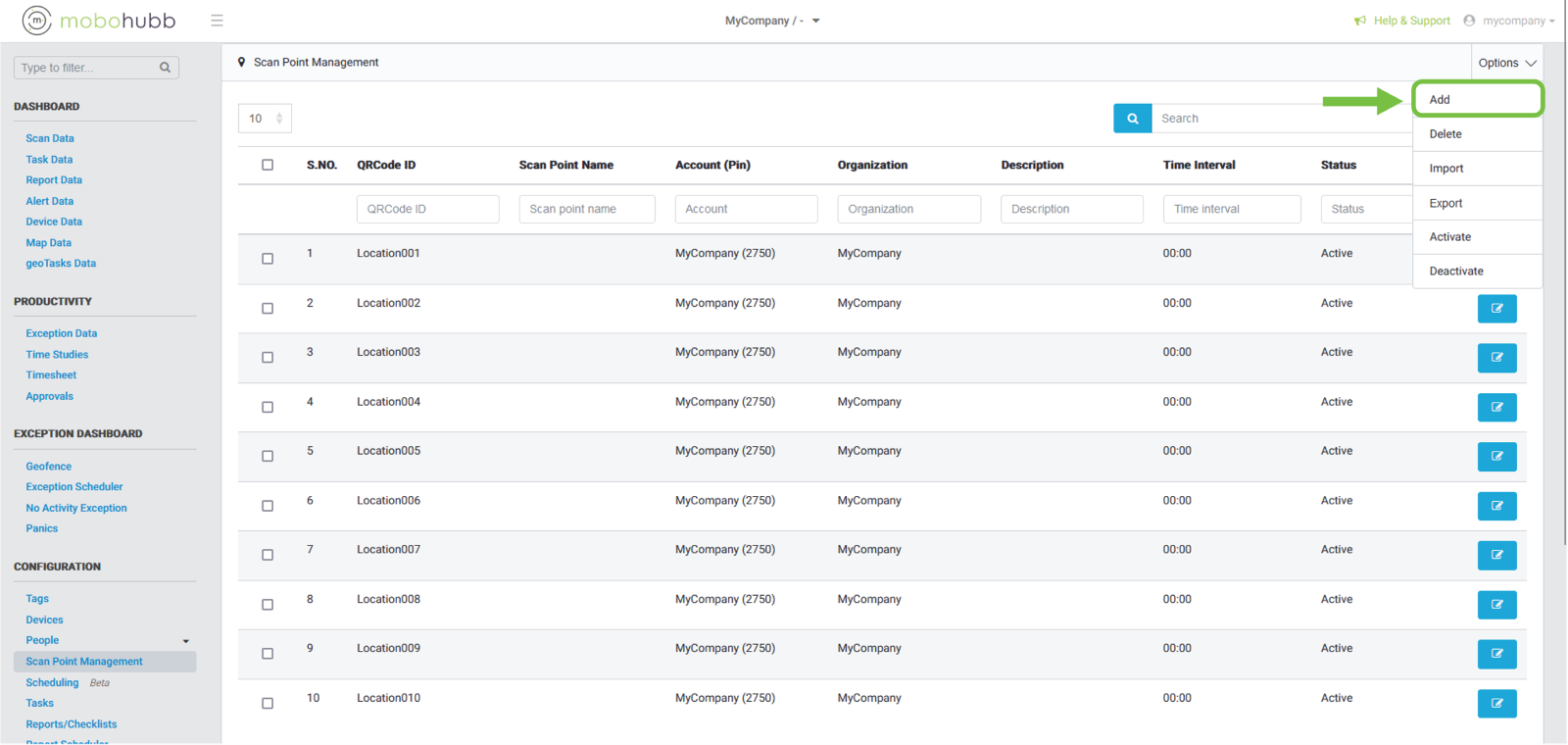

Step 3.

After clicking the "Options" button, a list of options is displayed; select "Add".

Step 4.

After clicking on the “Add” option, a form will be loaded with the following fields:

• Account*: In this dropbox, we can select the account to which we are going to add the scan point.

Note: If the user has only one account, only this one will appear, but if the user has more than one account, a list will be displayed.

• QRCode ID*: In this field, we must enter the name of the scanning point.

Note: The name must be the same as the generated QR example 1 "Location001" example 2 "Location022".

• Scan Point Name: In this field, we must enter the name of the scan point; this can be any name, for example, "First Floor".
• Description: Here we can describe an example of the scan point. "This scan point must be performed after the round."
• Time Interval: This field must be filled with hours and minutes; this time is for a scan control, for example, "if the code needs to be scanned every hour".
• Tags: In this field, we can select the tags created for scan point or normal; these are used to segment the searches.
• Associate this scan point with: We cannot associate a scan point with anything, but we can associate it with a form. By selecting the “A form” radio button, the list of created forms will be displayed. We can also select the “A task” radio button, and the list will be displayed. Created a task list.

Note: Any option selected will work as follows: when you scan the QR you will be redirected to the form or task.

For the scan point to be "Activate", you must click the checkbox.

You can then click "Save", "Cancel", or "Reset", the entire form and complete it again.

Have more questions? We're always here to help at: [e-mail]
